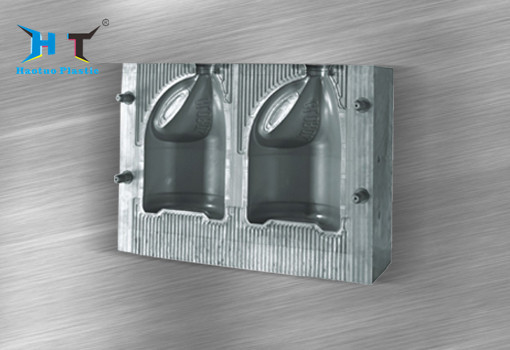

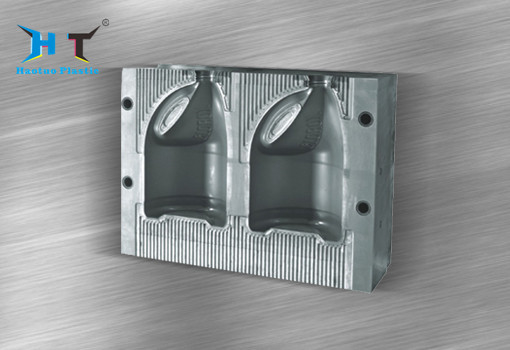

Blow molding mould plastic Blowing bottle mould blowing mould maker
| Mould material |
45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc.(Hardness 35~55HRC) |
| Mould base |
Standard mould base |
| Cavity |
Single/multi |
| Runner |
Hot/cold |
| Ejection system |
Motor/hydraulic cylinder/stripping plate/angle pin,etc |
| Cooling system |
In core baffle and in cavity plate chain drilling type cooling |
| Design software |
UG, PROE, CAD, CAXA ect. |
| Plastic material |
PP, PC, PS, PE, PU, PVC, ABS, PMMA ect. |
| Surface treatment |
Polish,texture,sandblasting,chrome |
| Mould life |
300,000-5,000,000 shots |
| Delivery time |
30-40days |
| Pacakge |
Standard export wooden case |
| Specification |
Depends on customer's requirements. |
Mould Feature
1.Excellent machinical strength. impact-resting,and non-cracking.
2.Bottle mouth and screw thread are of precise measurement, enable 100%
close matching with the bottle cap.
3.The weight of the product can be pre-setted.
4.The measurement and thickness of the product can meet the requirement of
design without any deviation.
5.The surface of bottle mouth and body is bright and smoonthness.
6.No defleshing and trimming save the material cost.
7.There is no joint seam at the bottom, and strength is improved accordingly.
8. The joint seam on the bottle body is smooth.
.
Our service
1.Your inquiry related to our product&price will be replied within 24hours.
2.OEM&ODM projects are highly welcomed.We have strong R&D team here to help
3.Your business relationship with us will be confidential to any third party.
4.Good after sale service offered,please get back if you got question.
FAQ
Q1:What kind of moulds do you make (plastic injection,compression or somethirelse)?
We are specialized in Plastic Injection mould , blow mould,and we can help customers arrange sourcing for other moulds.
Q2:Do you build hot runner plastic mould?
Yes,We bulid hot runner plastic moulds and specialized in many different systems,such as DME,Master
Mastip,Hasco,Yudo,Incoe,Husky,etc.We can meet your special needs.
Q3:How long is the lead-time for a plastic injection mould?
It all depends on the mould's size and complexity,normally,the lead time is 40days
Q4:Do you make spare parts for your cunstomer?
Yes,we can provide spare parts for mould if necessary or required by customers
Q5:How do you protect your moulds during packaging?
We protect our moulds by ueing anti-rust oil and wrapping film.To prevent damage during transition,We pack all moulds in wooden boxes.
